🏃‍♂️ GPX Jogging Dashboard

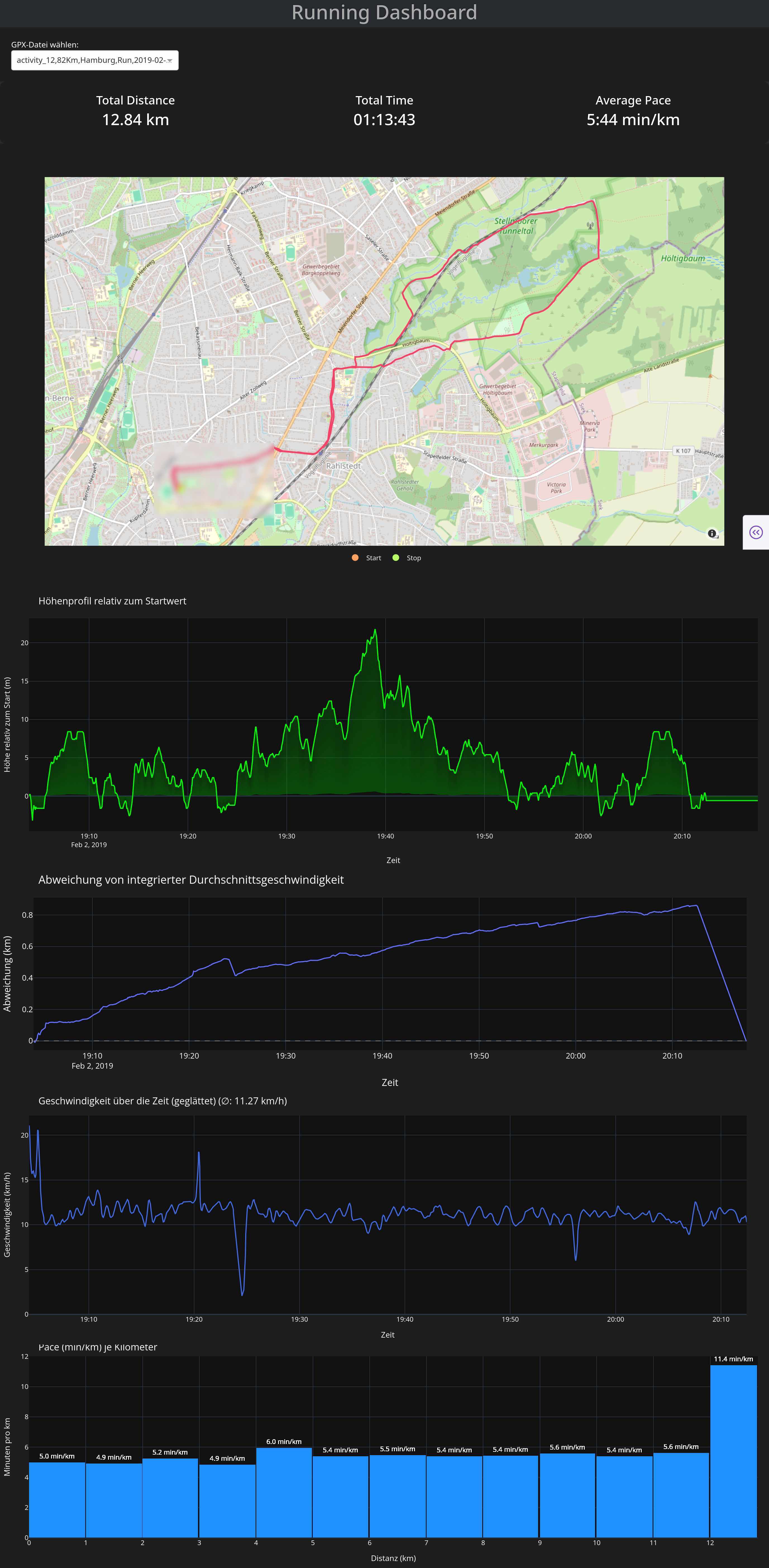

An interactive Python Dash app to visualize, analyze, and explore your jogging or running sessions recorded as GPX files.

Description

Features

  • Info Banner with total distance, duration, and average pace
  • Interactive Map View with route trace and start/stop markers
  • Elevation Profile with relative height and gradient fill
  • Speed Over Time plot with smoothing and average line
  • Deviation from Mean Speed to see pacing consistency
  • Pace Bar Chart showing per-kilometer pace breakdown

Project Structure

app.py                 # Main Dash application
gpx_files/             # Folder for storing GPX files
requirements.txt       # Required Python packages  (TODO!)
README.md              # This file

Getting Started

1. Clone the repository

git clone https://github.com/yourusername/gpx-jogging-dashboard.git
cd gpx-jogging-dashboard

2. Install dependencies

We recommend using a virtual environment:

python -m venv venv
source venv/bin/activate  # On Windows: venv\Scripts\activate
pip install -r requirements.txt

Content of the requirements.txt file:

  • dash
  • dash-bootstrap-components
  • plotly
  • pandas
  • numpy
  • gpxpy

3. Run the app

python app.py

Then open your browser and go to:
http://127.0.0.1:8050

Uploading Your GPX File

  1. Export your activity (e.g., from Strava, Garmin, etc.) as a .gpx file
  2. Place the file into the gpx_files/ directory
  3. Select it via the dropdown in the dashboard

Tech Stack

  • Dash (by Plotly) for building the UI and graphs
  • Pandas for data wrangling
  • Plotly Graph Objects & Express for advanced visuals
  • GPXPy for parsing .gpx files
  • Numpy for vectorized math and smoothing

Example GPX File

You can test the dashboard by placing any valid .gpx file in the gpx_files/ directory. Make sure it contains track points with elevation and time data.

To Do / Ideas

  • Heart rate support if present in GPX
  • Export graphs as images
  • Export as PDF report
  • Multi-run comparison

License

This project is open source under the MIT License.

Feedback / Contributions

Feel free to open issues or pull requests!
If you enjoy this project, a ⭐️ star is always appreciated.

Reference in New Issue View Git Blame Copy Permalink
Description
Interactive Dash Dashboard for GPX/FIT-Based Running Data Analysis This Python Dash app provides an interactive visual dashboard to analyze GPX/FIT tracking data from running sessions. After selecting a GPX/FIT file, the app processes the data and displays multiple synchronized plots, including: - A dynamic route map with start/stop markers - A relative elevation profile with gradient fill - Speed over time with smoothing - Heart rate over time with smoothing - Deviation from average speed ("ghost runner") - A summary banner showing total distance and duration The app helps runners and hobby athletes explore performance, pacing, elevation, and route efficiency—all visualized intuitively using Plotly and Dash.
