emacs/lisp/my/my-org-article.org

• Requirements
• Preamble
• Text
  • Headline
  • Formatting
  • Line break
  • Color
  • Glyphs & More
  • Makros
• Links
• Rule
• Blocks
  • Lists
  • Tables, Figures, Listings
  • Tables
    • Alignment and Bookstab style
    • Alignment
    • Fixed width / multi-line cells
    • Multi-page table / longtable
    • Number alignment
    • Custom caption command for LaTeX
    • Overlay using tikz
    • From Python src block output
  • Figures
    • file svg
    • file png
    • latex using tikz with data file
    • python using matplotlib
      • using my.mplstyle
      • using my-tex.mplstyle
    • dot graphviz
    • gnuplot
    • gnuplot gantt chart
  • Example / Verbatim
  • Source
• Math
  • Symbols and Functions
    • Quotation, Fraction
    • Units
    • Fields
    • Functions
    • Operators
    • Others
    • Tensor
  • Equation
  • Matrix
• Table of Contents and List of Tables, Figures, Glossaries, Symbols, Acronyms and References
  • Glossary and List of Symbols
  • Acronym
  • References
• LaTeX
• Examples
  • Org table to data file
  • Data file to Org table

If exporting only a subtree; the heading will be the document title if not overwritten by the property EXPORT_TITLE.

Inside emacs org use org-ref-list-of-tables and org-ref-list-of-figures to open a list of tables or figures.

Requirements

latexmk: for glossary and acronym add the following to ~/.config/latexmk/latexmkrc

add_cus_dep( 'acn', 'acr', 0, 'makeglossaries' );
add_cus_dep( 'glo', 'gls', 0, 'makeglossaries' );
$clean_ext .= " acr acn alg glo gls glg";
sub makeglossaries {
  my ($base_name, $path) = fileparse( $_[0] );
  my @args = ( "-q", "-d", $path, $base_name );
  if ($silent) { unshift @args, "-q"; }
  return system "makeglossaries", "-d", $path, $base_name;
}

add_cus_dep('glo', 'gls', 0, 'makeglo2gls');
sub makeglo2gls {
    system("makeindex -s '$_[0]'.ist -t '$_[0]'.glg -o '$_[0]'.gls '$_[0]'.glo");
}

add_cus_dep('acn', 'acr', 0, 'makeacn2acr');
sub makeacn2acr {
    system("makeindex -s \"$_[0].ist\" -t \"$_[0].alg\" -o \"$_[0].acr\" \"$_[0].acn\"");
}

Preamble

The preamble is defined by Org-keywords.

First line of the file can be used to define the spelling language of the document.

# -*- ispell-local-dictionary: "english" -*-
# -*- ispell-local-dictionary: "german" -*-

The title (also used in pdf metadata field)

#+TITLE: The title

The subtitle

#+SUBTITLE: The subtitle

The date

#+DATE: May 16, 2022
#+DATE: \today

Author(s) (also used in pdf metadata field)

#+AUTHOR: Max Muster
#+AUTHOR: Max Muster and Maxi Muster
#+AUTHOR: Max Muster, Maxi Muster

Email(s)

#+EMAIL: max.muster@example.com
#+EMAIL: max.muster@example.com and maxi.muster@example.com
#+EMAIL: max.muster@example.com, maxi.muster@example.com

Keywords (also used in pdf metadata field)

#+KEYWORDS: manual, examples

Export options

# draft:t - display a block at the end of a line, which is too long (indication bad line break)
# fontsize:"12pt" - set fontsize to 12pt (default: 11pt)
#+OPTIONS: draft:t fontsize:"12pt"

Language (en default)

#+LANGUAGE: en
#+LANGUAGE: de

Description (also used in pdf metadata field: subject). Keyword can be used multiple times to extend the description.

#+DESCRIPTION: Multiline
#+DESCRIPTION: description

Type of the document. (The abstract template uses or can reference to the keyword variable 'document_type' via the macro 'title-name')

#+DOCUMENT_TYPE: Seminararbeit

Overwrite references setup

#+BIBLATEX: \usepackage[backend=biber,citestyle=alphabetic,bibstyle=authoryear,sorting=nyt,sortcase=false]{biblatex}\setlength{\bibhang}{0pt}\addbibresource{references.bib}

Additional peamble setup

#+LATEX_HEADER_EXTRA: \usepackage{layout}

Text

Headline

* 1st level heading
** this is 2nd level heading
*** this is 3rd level heading

To have a headline in Org but not in an export set the header tag :ignore:.

* Header not listed in toc but its content                           :ignore:
bla bla bla

To have a headline with its content in Org but not in an export set the header tag :noexport:.

* Section not exported                                             :noexport:
bla bla bla, this will not be exported

To have a headline unnumbered in the table of contents set the header property :UNNUMBERED: t.

* Header listed unnumbered
:PROPERTIES:
:UNNUMBERED: t
:END:
bla bla bla

To have a headline in a LaTeX export started on a new page use the header property :CLEARPAGE: t.

* Section will start on a clear page (LaTeX)
:PROPERTIES:
:CLEARPAGE: t
:END:
bla bla bla

Formatting

  *bold*
  /italic/
  _underlined_
  =verbatim=
  ~code~
  +strike-through+
  X_{subscript}
  X^{superscript}

Line break

  Hello, \\  (enforce line break within a paragraph)
  World.

Color

• via link-decorator : colored text in orange
• via makro :

Glyphs & More

• in text

  • \LaTeX{} LaTeX (do not miss the brackets to get an whitespace after)
  • \euro{} €
  • \leftarrow ←
  • \rightarrow →
  • \uparrow ↑
  • \downarrow ↓

• in math

  • \ho{} (hochstellen) for math mode similar to ^{} but sets roman font
  • \ti{} (tiefstellen) for math mode similar to _{} but sets roman font
  • \rom{3} iii
  • \Rom{3} III

Makros

Active Org macros (org-macro-templates):

• Org built-ins (see https://www.gnu.org/software/emacs/manual/html_node/org/Macro-Replacement.html)

  {{{title}}}

  {{{title}}}

  {{{author}}}

  {{{author}}}

  {{{email}}}

  {{{email}}}

  {{{date}}}

  {{{date}}}

  {{{time(FORMAT)}}}

  : format see function format-time-string

  {{{input-file}}}

  {{{input-file}}}

  {{{modification-time(FORMAT[,VC])}}}

  : vc is a toogle (nil,t) to retrieve the time from version control system

  {{{keyword(KEYWORD)}}}

  {{{property(PROPERTY-NAME[,LOCATION])}}}

  : optional location see function org-link-search (https://www.gnu.org/software/emacs/manual/html_node/org/Search-Options.html)

  {{{n}}} {{{n(COUNTER[,ACTION])}}}

  : increment counter name, if optional action is '-' do not increment, if number set to number, if somthing else reset to 1

• custom

  {{{textsc(text)}}}

  {{{color(hex,text)}}}

  {{{kbd(text)}}}

  {{{highlight(text[,options])}}}

  {{{highlight(text highlighted in default color)}}}, {{{highlight(text highlighted in red,red)}}}, {{{highlight(text highlighted in green and blue borders,green,blue)}}}

Links

[[http://example.com/]]
[[http://example.com/][description]]

Rule

a horizontal rule, 5 or more only dashes

---

Blocks

Easy Templates (enter <x[TAB])

• s #+BEGIN_SRC … #+END_SRC
• e #+BEGIN_EXAMPLE … #+END_EXAMPLE
• q #+BEGIN_QUOTE … #+END_QUOTE
• v #+BEGIN_VERSE … #+END_VERSE
• c #+BEGIN_CENTER … #+END_CENTER
• l #+BEGIN_EXPORT latex … #+END_EXPORT
• L #+LATEX:
• h #+BEGIN_EXPORT html … #+END_EXPORT
• H #+HTML:
• a #+BEGIN_EXPORT ascii … #+END_EXPORT
• A #+ASCII:
• I #+INCLUDE: file
• I #+INCLUDE: interactive version

Lists

Org reference: https://orgmode.org/manual/Plain-lists-in-LaTeX-export.html#Plain-lists-in-LaTeX-export

Inline list: Some ways to say "Hello":

• Hola
• Bonjour
• Guten Tag.

Unordered list

• One

  • Two

    • Three

      • Four
      • Four 2
      • Four 3

Ordered list

1. One

2. Two

   1. Two one

   2. Two two

      1. Two two one

      2. Two two two

         1. Two two two one
20. Test
21. foo
22. baz

List with custom item spacing

• One
• Two
• Three
• Four
• Five

Description list

an item

a description

Tables, Figures, Listings

Tables

Default tables having a placement atrribute set to [htbp] (still allows to find a sweet spot). For a 'here in place' placement use :placement [h] (approximately at the same point) :placement [H] (precisely at point, will deactivate settings from the float package, similar to [h!])

Org reference: https://www.gnu.org/software/emacs/manual/html_node/org/Tables-in-LaTeX-export.html

Alignment using column type #+ATTR_LATEX: :align xxx

• built-in

  • l: left-aligned cells
  • c: center-aligned cells
  • r: right-aligned cells
  • p{width}: top-aligned cells with fixed width
  • m{width}: middle-aligned cells with fixed width
  • b{width}: bottom-aligned cells with fixed width
  • >{declaration}: pre-column-declaration, used before lcrpmb
  • <{declaration}: post-column-type declaration, user after lcrpmb
  • @{text}: column containing the text in every cell of the column

• custom

  • L{width}: left-aligned cells with fixed width
  • C{width}: center-aligned cells with fixed width
  • R{width}: right-aligned cells with fixed width

Alignment and Bookstab style

right	center	left
A1	A2	A2
B1.1	B2.1	B3.1
C1.1.1	C2.1.1	C3.1.1

Alignment

right	center	left
A1	A2	A3
B1.1	B2.1	B3.1
C1.1.1	C2.1.1	C3.1.1

Fixed width / multi-line cells

Multi-line cells with fixed width cells using pmbLCR and forced newline using \newline.

right	center	left
A1	A2	A3
B1.1	Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.≠wline Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.	B3.1
C1.1.1	C2.1.1	C3.1.1

Multi-page table / longtable

…	…
…	3.456
…	2,842

Number alignment

Alignment of numbers (numprint) using column type n (numbers in math) and N (numbers in text)

n{5}{3}	n[3]{5}{3}	n[3][1]{5}{3}	N{5}{3}
123.45e12	123.45e12	123.45e12	123.45e12
12345.678e123	12345.678e123	12345.678e123	12345.678e123
123.45e12.3	123.45e12.3	123.45e12.3	123.45e12.3
12345.678e123.3	12345.678e123.3	12345.678e123.3	12345.678e123.3

Custom caption command for LaTeX

Set caption with \LaTeX{} command

…	…
…	…

Overlay using tikz

	1, 2, 7	3	4, 6	5	← Oberseite
Schicht	8, 13, 14	12	9, 11	10	← Unterseite
1	\tikzmark{LAa}Gelcoat	\tikzmark{LAc}Gelcoat	\tikzmark{LAe}Gelcoat	\tikzmark{LAg}Gelcoat	\tikzmark{LAi}Saertex(DB)
2	SNL(Triax)	SNL(Triax)	SNL(Triax)	SNL(Triax)	FOAM
3	SNL(Triax)	SNL(Triax)	SNL(Triax)	SNL(Triax)	\tikzmark{LAj}Saertex(DB)
4	\tikzmark{LAb}SNL(Triax)	E-LT-5500(UD)	FOAM	Carbon(UD)
5		FOAM	\tikzmark{LAf}SNL(Triax)	\tikzmark{LAh}SNL(Triax)	\(\uparrow\) Längsver-
6		\tikzmark{LAd}SNL(Triax)			\phantom{\(\uparrow\)} steifungen

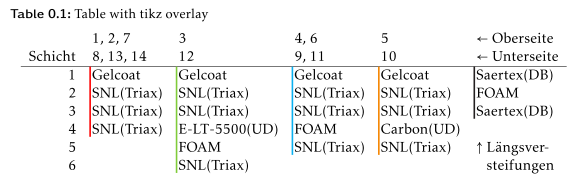

Table with tikz overlay

From Python src block output

b	foo
$R^{2}$	1.363

Figures

file svg

See figure ref:fig-svg-import as a reference.

file png

latex using tikz with data file

file path to data file need to be an absolute path, bacause the compilation is done in a tmp directory (/tmp/babel-XXXXXX/).

python using matplotlib

SRC block header :prologue (mpl-prologue) for non-latex exports (.svg exports) to loads my.mplstyle including kpfonts. Other style via optional argument, e.g. :prologue (mpl-prologue "my-tex") rendering via latex including kpfonts.

SRC block header :var fname=(mpl-var "<file_name>") to export figure as .pgf for latex and .svg otherwise, like HTML.

using my.mplstyle

Python matplotlib figure using matplotlib my. The style my renders without LaTeX but using the kpfonts.

import math as m
import matplotlib as mpl

n = 30
t = [i/n*m.pi for i in range(n+1)]

fig, ax = plt.subplots()
[ax.plot(t, [m.sin(i+j/12*m.pi) for i in t], color=f'C{j}', label=f'$C_{j}$') for j in range(10)]
ax.legend()
ax.set_title(r'Functions: $\sin(x + \pi \, i/12)$')
ax.set_xlabel(r'$x ~ \times \pi$')
ax.set_ylabel('$y$')
ax.set_xticks([0, m.pi/4, m.pi/2, m.pi*3/4, m.pi])
ax.set_xticklabels([0.00, 0.25, 0.50, 0.75, 1.00])
ax.xaxis.set_minor_locator(mpl.ticker.AutoMinorLocator(3))
ax.grid()
ax.grid(which='minor', linestyle=':')

fig.savefig(fname)
plt.close()
print(fname, end='')

using my-tex.mplstyle

Python matplotlib figure using matplotlib my-tex. The style my-tex renders with LaTeX and uses the kpfonts.

import math as m
import matplotlib as mpl

n = 30
t = [i/n*m.pi for i in range(n+1)]

fig, ax = plt.subplots()
[ax.plot(t, [m.sin(i+j/12*m.pi) for i in t], color=f'C{j}', label=f'$C_{j}$') for j in range(10)]
ax.legend()
ax.set_title(r'Functions: $\sin(x + \pi \, i/12)$')
ax.set_xlabel(r'$x ~ \times \pi$')
ax.set_ylabel('$y$')
ax.set_xticks([0, m.pi/4, m.pi/2, m.pi*3/4, m.pi])
ax.set_xticklabels([0.00, 0.25, 0.50, 0.75, 1.00])
ax.xaxis.set_minor_locator(mpl.ticker.AutoMinorLocator(3))
ax.grid()
ax.grid(which='minor', linestyle=':')

fig.savefig(fname)
plt.close()
print(fname, end='')

dot graphviz

digraph G {
  main -> parse -> execute;
  main -> init;
  main -> cleanup;
  execute -> make_string;
  execute -> printf;
  init -> make_string;
  main -> printf;
  execute -> compare;
}

gnuplot

gnuplot-inline-display-mode gnuplot-dedicated-display-mode gnuplot-external-display-mode

reset

set title "Putting it All Together"

set xlabel "X"
set xrange [-8:8]
set xtics -8,2,8


set ylabel "Y"
set yrange [-20:70]
set ytics -20,10,70

f(x) = x**2
g(x) = x**3
h(x) = 10*sqrt(abs(x))

plot f(x) w lp lw 1, g(x) w p lw 2, h(x) w l lw 3

gnuplot gantt chart

Task	Effort	Start	End	Who
Time available	1	<2020-11-02 Mon>	<2020-11-13 Fri>
Task 0	2	<2020-11-03 Tue>	[2020-11-05 Thu]	Al
Task 1	1	<2020-11-05 Thu>	<2020-11-06 Fri>	Bo
Task 2	3	<2020-11-05 Thu>	[2020-11-10 Di]	Ca
Task 3	2	<2020-11-06 Fri>	<2020-11-10 Tue>	Ca
Task 4	2	<2020-11-06 Fri>	<2020-11-06 Fri>	Bo
Task 5	1	<2020-11-10 Tue>	<2020-11-10 Tue>	Bo
Task 6	1	<2020-11-11 Wed>	<2020-11-12 Thu>	Bo
Task 7	2	<2020-11-09 Mon>	<2020-11-10 Tue>	Al
Task 8	1	<2020-11-12 Thu>	<2020-11-12 Thu>	Al
Task 9	1	<2020-11-06 Fri>	<2020-11-09 Mon>	Al
Task 10	1	<2020-11-12 Thu>	<2020-11-13 Fri>	Bo
Task 11	1	<2020-11-13 Fri>	<2020-11-13 Fri>

reset
# http://gnuplot.sourceforge.net/demo_5.1/gantt.html
OneMonth = strptime("%m","2")
OneWeek = strptime("%U","2")
OneDay = strptime("%d","2")
timeformat = "%Y-%m-%d %a"
T(N) = timecolumn(N,timeformat)

set xdata time
set format x "%a\n%d\n%b\n'%y"
set xtics OneDay nomirror
set xtics scale 2, 0.5
set mxtics 7

skiptorow=2
set yrange [(skiptorow-2):] reverse
set ytics nomirror

unset key
set title "{/=15 My Project}"
set grid x y
set border 3
set style arrow 1 nohead filled size screen 0.02, 15 fixed lt 3 lw 8

plot DATA using (T(3)) : ($0) : (T(4)-T(3)) : (0.0) : yticlabel(1) with vector as 1

Example / Verbatim

  verbatime example

or using : (start the example lines with a colon followed by a space.)

a single line example
can be indented

Source

  <body>

string = 'hello' + ', world' + !*3  # comment
print(string)

Math

Symbols and Functions

Quotation, Fraction

- \[\underbracket[1pt][0pt]{bla}_\text{blo}\]
- \[\Dfrac{3}{7}\]
- \[\slfrac{3}{7}\]
- \[\sfrac{3}{7}\]
- \[\nicefrac{3}{7}\]
- \[\faktor{3}{7}\]
- \[\Faktor{3}{7}\]

Units

- \(\unit{123.45}{\milli\meter}\)

Fields

- \(\field{X}\) : field
- \(\fA{}\) : Affine field
- \(\fC\) : Complex field
- \(\fFp\) : Finite field
- \(\fFq\) : Finite field
- \(\fGa\) : Group scheme
- \(\fK\) : Generic field (Körper)
- \(\fN\) : Natural numbers
- \(\fPj\) : Projective field
- \(\fR\) : Real numbers
- \(\fQ\) : Rational numbers
- \(\fI\) : Irrational numbers
- \(\fZ\) : Integers
- \(\Def\) : Domain of a function D (Definitionsbereich)
- \(\LM\) : Solution set L (Lösungsmenge)

Functions

- \(\sins\) : Short sin
- \(\coss\) : Short cos

Operators

- \(\norm{x}\) : ||x||
- \(\abs{x}\) : |x|
- \(\innerProd{x}{y}\) : <x,y>
- \(\Bild U\) : Map of a function (mapping, transformation)
- \(\rank U\) : Rank of a matrix
- \(\tr U\) : Matrix trace
- \(\dev U\) : Matrix deviation
- \(\var U\) : Variance
- \(\grad U\) : Gradiant
- \(\divergence U\) : Divergence div
- \(\rot U\) : Rotation
- \(\diag U\) : Diagonal matrix
- \(\adj\) : Adjoint operator H
- \(\adjugate U\) : Classical adjoint adj (adjugate)
- \(()^\T\) : Transpose operator

Others

- \(\corresponds\) : equal sign with a hat
- \(\dt{u}\) : dot above symbol (time derivative)
- \(\ddt{u}\) : two dots above symbol (time derivative)
- \(\Eval{a}{b}{c}\) : evaluation limits a|_b^c
- \(\fdg\) : 'für die gilt' | (vertical bar)
- \(\E\) : E
- \(\qed\) : Q.E.D. quod erat demonstrandum "what was to be shown" -> "which was to be demonstrated"
- \(\euler\) : Euler e
- \(\deg\) : Degree °
- \(\degC\) : °C
- \(\TF\) : sign for transfomed values: low tilde
- \(\dif\) : d

Tensor

- \(\tensor{U}\) : general bold, no further decoration
- \(\tensorI{U}\) : underline
- \(\tensorII{U}\) : two underlines
- \(\tensorIII{U}\) : tilde 3 below symbol
- \(\tensorIV{U}\) : tilde 4 below symbol
- \(\tensori{U}\) : harpoon right
- \(\tensorii{U}\) : harpoon right and left
- \(\tensoriii{U}\) : arrow right and harpoon left
- \(\tensoriv{U}\) : arrow right and left

Equation

named equation:

\begin{equation} e^x = 4 \end{equation}

And refer to Eq. ref:eq-in-name in document.

Matrix

Create math matrix objects with org tables

a	b
c	d

1	2
3	4

Table of Contents and List of Tables, Figures, Glossaries, Symbols, Acronyms and References

to display the table of contents

#+LATEX: \clearpage\pdfbookmark[1]{\contentsname}{toc}
#+TOC: headlines

to display the list of figures

#+LATEX: \listoffigures
# `#+TOC: figures' is not working

to display the list of tables

#+TOC: tables
# old:  #+LATEX: \listoftables

to display the list of listing

#+TOC: listings
# old:  #+LATEX: \lstlistoflistings

to display the tables for glossaries, symbols and acronyms

#+LATEX: \printglossary\thispagestyle{plain}
#+LATEX: \printglossary[type=\acronymtype,title=Abkürzungsverzeichnis]\thispagestyle{plain}
#+LATEX: \printglossary[type=symbols,style=mysymbols,title=Symbolverzeichnis]\thispagestyle{plain}
#+LATEX: \glsaddallunused

Glossary and List of Symbols

Define glossary and symbol entries with

# glossaries
#+latex_header_extra: \newglossaryentry{tree}{name={tree},description={A description for the glossary entry},type=main,symbol=}
#+latex_header_extra: \newglossaryentry{shrub}{name={shrub},description={A description for the other glossary entry},type=main,symbol=}
# symbols
#+latex_header_extra: \newglossaryentry{A}{name=\(A\),description={{Area}},type=symbols,symbol=mm^{2}}
#+latex_header_extra: \newglossaryentry{L}{name=\(L\),description={{Length}},type=symbols,symbol=mm}

See command org-ref-glossary-gls-commands and use org-ref-insert-glossary-link to insert a link with completion (C-c C-l).

Use a glossary entry using

• only link location gls:tree or gls:shrub
• link location and description Shrub, the description is only visible in Org
• not recommended latex command \gls{tree}

gls	The term associated with the label
glspl	The plural term
Gls	The capitalized term
Glspl	The plural capitalized term
glssymbol	The symbol defined (only with latex definition)
Glssymbol	The capitalized symbol defined (only with latex definition)
glsdesc	The description associated with the label
Glsdesc	The capitalized description associated with the label

#

#

Acronym

Define acronym entries with

#+latex_header_extra: \newacronym{bb}{BB}{Two Letter Acronym}
#+latex_header_extra: \newacronym{qos}{QoS}{quality-of-service}

See command org-ref-acronym-types and use org-ref-insert-acronym-link to insert a link with completion (C-c C-l).

Use a acronyms entry using

• only link location acrfull:bb
• link location and description BB quality-of-service (QoS)

acrshort	The acronym for label
acrshortpl	The acronym for label in plural
Acrshort	Capitalized acronym
Acrshortpl	Plural capitalized acronym
ACRshort	ALL-CAPS acronym
ACRshortpl	ALL-CAPS plural acronym
acrlong	The label definition
acrlongpl	The plural definition
Acrlong	Capitalized definition
Acrlongpl	Plural capitalized definition
ACRlong	ALL-CAPS definition
ACRlongpl	plural ALL-CAPS definition
acrfull	Both the acronym and its definition
acrfullpl	Both the acronym and its definition in plural
Acrfull	Capitalized both the acronym and its definition
Acrfullpl	Capitalized both the acronym and its definition in plural
ACRfull	Both the acronym and its definition in ALL-CAPS
ACRfullpl	Both the acronym and its definition in plurall ALL-CAPS

#

#

References

check regarding the style defined in the preamble

biber --validate-datamodel <texfilebasename>

this only checks the bib with default style

biber --tool --validate-datamodel <filename>.bib

Insert cite entry with (C-c C-l).

Cite	basic citation with capitalization
parencite	similar to cite with parentheses
Parencite	similar to cite with parentheses and capitalization
footcite	Put the citation in a footnote
footcitetext	Put the citation in a footnote using \footnotetext
textcite	print the authors or editors as a subject of the sentence
Textcite	print the authors or editors as a subject of the sentence with capitalization
smartcite	like parencite in a footnote, and footcite in the body
Smartcite	like parencite in a footnote, and footcite in the body with capitalization
cite	"similar to cite, but prints the year or title
parencite	"similar to parencite, but prints the year or title
supercite	superscripted numeric citation (only in numberic styles)
autocite	handles some punctuation nuances
Autocite	handles some punctuation nuances with punctuation
autocite	"same as autocite but * is passed to the backend
Autocite	"same as Autocite but * is passed to the backend
citetitle	the shorttitle or title field
citetitle	"the full title
citeyear	the year field
citeyear	"the year field and extradate information if available
citedate	the full date or year
citedate	"the full date or year, including extradate information if available
citeurl	the url field
fullcite	create a full citation similar to what is in the bibliography
footfullcite	create a full citation as a footnote
notecite	print prenote and postnote, but no citation
Notecite	print prenote and postnote, but no citation with capitalization
pnotecite	similar to notecite with parentheses
Pnotecite	similar to Notecite with parentheses
fnotecite	similar to notecite in a footnote

org-ref-biblatex-types

cites	multicite version of cite
Cites	multicite version of Cite
parencites	multicite version of parencite
Parencites	multicite version of Parencite
footcites	multicite version of footcite
footcitetexts	multicite version of footcitetext
smartcites	multicite version of smartcite
Smartcites	multicite version of Smartcite
textcites	multicite version of textcite
Textcites	multicite version of Textcite
supercites	multicite version of supercite
autocites	multicite version of autocite
Autocites	multicite version of Autocite

Example: See reference cite:manual (will be [1]) or cite:article cite:book (will be [2,3]) and cite:article cite:book cite:manual (will be [1-3]).

LaTeX

Current setup uses the lualatex compiler.

packages

• general

  • fontenc
  • hyperref
  • kpfonts
  • luainputenc
  • xurl

• text and glyphs

  • eurosym
  • menukeys
  • xcolor

• math

  • faktor
  • madthds
  • mathtools
  • MnSymbol
  • nicefrac
  • SIunits
  • xfrac

• lists

  • enumitem

• tables, figures and listings

  • float
  • caption

• tables

  • booktabs
  • longtable
  • numprint
  • array

• figures

  • svg
  • tikz
  • gnuplot-lua-tikz
  • pgfplots

• listings

  • listingsutf8
• glossaries

• pdf

  • pdfpages
  • pdflscape

Examples

Org table to data file

0	1	1
1	2	4
2	3	5
3	4	9

with open("data.dat", "w") as f:
  f.write("\n".join([" ".join(list(map(str, i))) for i in data]))

Data file to Org table

with open("data.dat", "r") as f:
  data = f.read()
return data

0	1	1
1	2	4
2	3	5
3	4	9
